    KLM Solid Linear Motion Ball Bearing Cylindrical High Rigidity

    Ask Lasest Price
    Brand Name : BLUEN
    Model Number : KLM
    Certification : ISO
    Price : USD3-USD5 PER PIECE
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100000PCS Per Month
    Delivery Time : 2 Days
    • Product Details
    • Company Profile

    KLM Solid Linear Motion Ball Bearing Cylindrical High Rigidity

    KLM Series Solid Type Linear Ball Bearings

    Featuresof Linear Ball Bearings


    KLM Linear Ball Bearing composed of an outer ring,steel balls and a cage is a cylindrical bearing for the most universal applications, which ensures precise and smooth infinite linear motion due to its outer ring of high rigidity.
    The Type KLM (solid type) cannot be locked to the housing by interference alone. This type of bearing needs to be axially located with a snap ring
    KLM...S Linear Ball Bearing is composed of an outer ring, steel balls and a cage. And both of the outer ring and the cage have an axial slit,
    as illustrated, so as to enable to shrink the inscribed circle diameter of the cage by pressing the outer ring in radial direction from the housing and to thereby adjust radial clearance from shaft. Thus, this type also ensures precise and smooth infinite linear motion.
    KLM...P is composed of an outer ring, steel balls and a cage. And the outer ring and the cage are of arc sectional shape, from which one row of balls (equivalent to 50˚ to 60˚ degree spacing) is removed. Thus, the arc cross-sectional ring and cage with 50˚ to 60˚ degree opening allows the bearing assy to pass through a shaft support truss or a shaft support stand on midway of the shaft stroke.
    This type also ensures precise and smooth infinite linear motion, similarly to other types.
    The bearing radial clearance can be also adjusted.

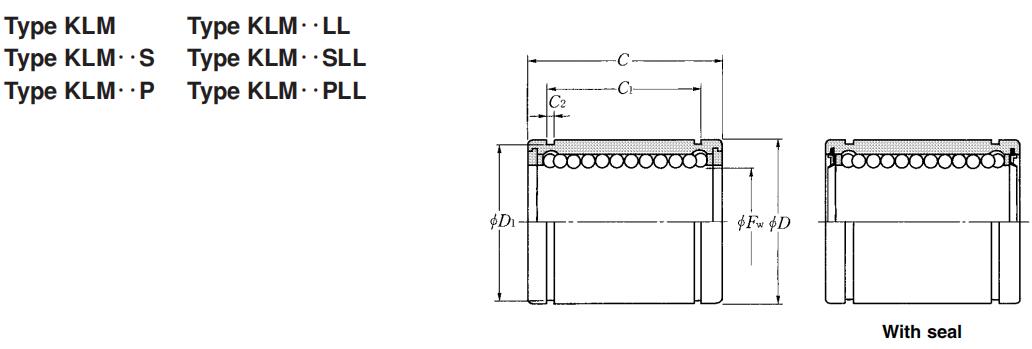

    Dimensions of Linear Ball Bearings
