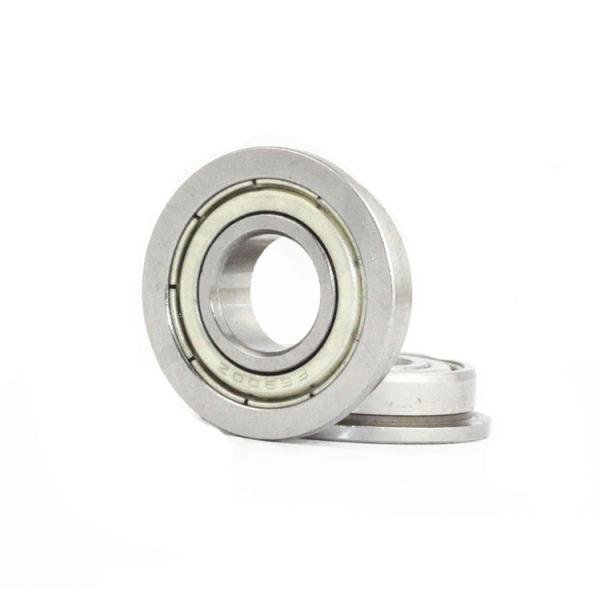

F Series Flange Bearing Deep Groove Ball Bearing F608ZZ
Features of Flange Ball Bearing
Deep Groove Ball Bearing with flange outer ring on the outer wheel
makes axial positioning simple;
no bearing housing is required, and it becomes more economical. In
order to obtain low friction torque, high rigidity, and good
rotation accuracy of the bearing, steel balls with small outer
diameters are used. The use of hollow shaft ensures the space for
light weight and wiring .
The biggest feature is that the flange and the bearing are
integrated. When there is no connecting piece at one end of the
shaft and it needs to be fixed on a plane such as a plate or a
wall, the flange bearing shows its advantages.
Among the ultra-small bore miniature bearings, it can be divided
into ZZ steel plate bearing dust cover series, RS rubber bearing
sealing ring series, flange plate series, stainless steel series,
ceramic ball series, etc. Miniature ball bearings have a wide range
of uses. It is suitable for products requiring high speed rotation,
low friction torque, low vibration and low noise.
Application of Flange Ball Bearing
Flange bearings are suitable for all kinds of industrial equipment,
small rotary motors, office equipment, micro motor soft drives,
pressure rotors, dental drills, hard disk motors, stepper motors,
video recorder drums, toy models, fans, pulleys, rollers,
Transmission equipment, entertainment equipment, robots, medical
equipment, office equipment, testing equipment, deceleration,
transmission, motor optics, imaging equipment, card readers,
electromechanical, precision machinery, power tools and toys, etc.
| Flange | Open | Shield | d
ID | D OD | B Thicness | Cr(N) | Cor(N) | Limited Speed |
| Grease | Oil |
| F | 682 | ZZ | 2 | 5 | 2.3 | 167 | 49 | 9.4 | 10.6 |
| F | 692 | ZZ | 2 | 6 | 3 | 330 | 98 | 8.3 | 9.3 |
| F | 602 | ZZ | 2 | 7 | 3.5 | 382 | 127 | 7.3 | 8.2 |
| F | 682X | ZZ | 2.5 | 6 | 2.6 | 286 | 59 | 7.8 | 8.7 |
| F | 692X | ZZ | 2.5 | 7 | 3.5 | 382 | 127 | 6.9 | 7.8 |
| F | 602X | ZZ | 2.5 | 8 | 4 | 549 | 176 | 6 | 7 |
| F | 683 | ZZ | 3 | 7 | 3 | 314 | 108 | 6.6 | 7.4 |
| F | 693 | ZZ | 3 | 8 | 4 | 559 | 176 | 6 | 6.7 |
| F | 603 | ZZ | 3 | 9 | 5 | 568 | 186 | 5.5 | 6.2 |
| F | 623 | ZZ | 3 | 10 | 4 | 627 | 216 | 5.1 | 5.7 |
| F | 684 | ZZ | 4 | 9 | 4 | 637 | 225 | 5.1 | 5.7 |
| F | 694 | ZZ | 4 | 11 | 4 | 960 | 353 | 4.4 | 4.9 |
| F | 604 | ZZ | 4 | 12 | 4 | 960 | 353 | 4.1 | 4.6 |
| F | 624 | ZZ | 4 | 13 | 5 | 1300 | 490 | 3.9 | 4.4 |
| F | 634 | ZZ | 4 | 16 | 5 | 1340 | 519 | 3.3 | 4.1 |
| F | 685 | ZZ | 5 | 11 | 5 | 7150 | 284 | 4.1 | 3.9 |
| F | 695 | ZZ | 5 | 13 | 4 | 1080 | 431 | 3.7 | 3.5 |
| F | 605 | ZZ | 5 | 14 | 5 | 1330 | 510 | 3.5 | 3.1 |
| F | 625 | ZZ | 5 | 16 | 5 | 1340 | 676 | 3.1 | 3.9 |
| F | 635 | ZZ | 5 | 19 | 6 | 715 | 892 | 2.8 | 3.5 |
| F | 686 | ZZ | 6 | 13 | 5 | 1080 | 441 | 3.5 | 3.2 |
| F | 696 | ZZ | 6 | 15 | 5 | 1340 | 519 | 3.1 | 3.5 |
| F | 606 | ZZ | 6 | 17 | 6 | 2260 | 843 | 2.9 | 3.2 |
| F | 626 | ZZ | 6 | 19 | 6 | 2330 | 892 | 2.6 | 3 |
| F | 687 | ZZ | 7 | 14 | 5 | 1180 | 510 | 3.1 | 3.5 |
| F | 697 | ZZ | 7 | 17 | 5 | 1610 | 715 | 2.8 | 3.1 |
| F | 607 | ZZ | 7 | 19 | 6 | 2330 | 892 | 2.5 | 2.8 |
| F | 627 | ZZ | 7 | 22 | 7 | 3280 | 1380 | 2.3 | 2.6 |
| F | 688 | ZZ | 8 | 16 | 5 | 1250 | 588 | 2.8 | 3.1 |
| F | 698 | ZZ | 8 | 19 | 6 | 2230 | 921 | 2.4 | 2.7 |
| F | 608 | ZZ | 8 | 22 | 7 | 3290 | 1380 | 2.2 | 2.5 |
| F | 689 | ZZ | 9 | 17 | 5 | 1320 | 666 | 2.5 | 2.8 |
| F | 699 | ZZ | 9 | 20 | 6 | 2470 | 1080 | 2.3 | 2.6 |
| F | 6700 | ZZ | 10 | 15 | 4 | 853 | 431 | 2.6 | 3 |
| F | 6701 | ZZ | 12 | 18 | 4 | 921 | 529 | 2.2 | 2.5 |
| F | 6800 | ZZ | 10 | 19 | 5 | 1720 | 843 | 2.3 | 2.6 |
FAQ
Q: How do you pack the deep groove ball bearings ?
Each in small box or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box /
Wooden pallet
- Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet
- Heavy Items: Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality
check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
