JS Series Snake Spring Coupling Flexible Coupling

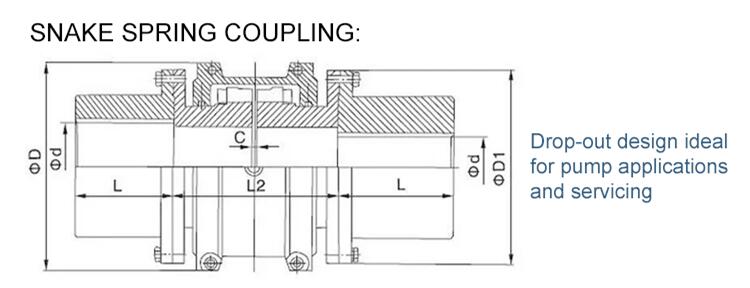

Structure of Snake spring Coupling :
1. The oil injection point temperature ≥150℃, can resist
centrifugal force, with separation stability, no impurities and
will not corrode carbon steel or nitrile rubber lithium grease
performance is good.
2. Alignment of the gap and angular deviation between the two valve
couplings. When installing, measure the gap between the two valve
couplings every 90°, and the difference between the large value and
the small value is not more than 0.38mm.
3. Fill Snake spring Coupling with enough grease. Sufficient grease is very important for the
work of the coupling. Annual check-ups are recommended. Pour oil
backwards using a dry grease gun until the hole is filled with
excess oil.
Features of Snake spring Coupling :
1. High strength of elastic element, smaller volume and compact
structure than other couplings that transmit the same torque.
2. stable performance, long service life. .
3. manufacturing is more complex, high cost.
4. with high power and high speed pumps and fans, high power internal
combustion engines, compressors, gas turbines.
5. Crushing machinery with large impact torque and drastic load
change.
6. precision transmission machinery, data transmission system, such
as CNC machine tools.
7. high temperature, high precision transmission requirements such as
textile, papermaking, printing, packaging machinery.
FAQ
Q: How do you pack the goods?
Each in small box or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box /
Wooden pallet
- Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet
- Heavy Items: Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality
check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
