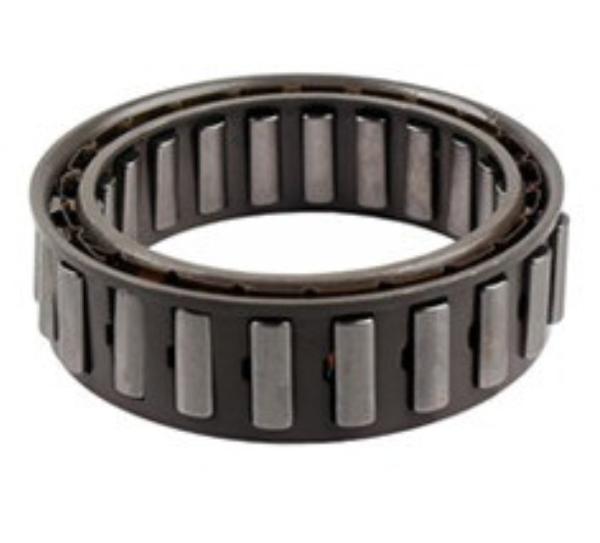

    DC3034 Freewheel Bearing DC Series Gcr15 Sprag Type One Way Clutch Heat Treatment

    Ask Lasest Price
    Brand Name : BLUEN
    Model Number : DC3034
    Certification : ISO
    Price : USD5-USD7PER PIECE
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100000PCS Per Month
    Delivery Time : 5 Days
    • Product Details
    • Company Profile

    DC3034 Freewheel Bearing DC Series Gcr15 Sprag Type One Way Clutch Heat Treatment

    DC Series Sprag Type One Way Clutch Bearings


    Features of DC Sprag type one way clutch bearings

    • Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads,

    Lubrication and sealing

    • The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.
    • The sprag space tolerance must not be exceeded.

    Inner and outer races must both have a minimum plain width “e”, without any recess, to ensure the freewheel functions correctly.

    Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.

    Hardness

    • Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
    • Core hardness to be HRC35 to 45.

    Surface roughness not to exceed 22CLA.

    Maximum taper between races: 0,007 mm for 25 mm width.


    Datasheet of DC Sprag type one way clutch bearings

    SizeTorqueOverrunning speeds

    Øa

    + 0,008

    - 0,005

    Øc

    ± 0,013


    Sprag spaceeminØdminØbmaxNumber of clipsNumber of spragsWeight
    TKN1[Nm]

    nimax2

    [min-1]

    Namax2

    [min-1]

    [mm][mm][mm][mm][mm][mm][kg]
    DC2222G638600430022.22538.8858.3310.05015-120.030
    DC27761196900340027.76244.4228.3313.55818-140.055
    DC30341246300310030.34047.0008.3313.56220-140.060
    DC3175(3C)1596000300031.75048.4108.3313.563243160.060
    DC3809A2755000250038.09254.7528.33167129-180.085
    DC4127(3C)2244600230041.27557.9358.3313.575323180.090
    DC4445A3634300210044.45061.118.33167934-200.095
    DC4972(4C)3063800190049.72166.3818.3313.586384220.100
    DC5476A5253500170054.76571.4258.33169242-240.110
    DC5476A(4C)5253500170054.76571.4258.331692424240.130
    DC5476B(4C)7693500170054.76571.4258.332192424240.180
    DC5476C(4C)9903500170054.76571.4258.3325.492424240.200
    DC5776A6043300160057.76074.4208.33169844-260.110
    DC6334B8063000150063.34080.0008.332110450-260.175
    DC7221(5C)6752600130072.21788.8778.3313.5115565300.140
    DC7221B12792600130072.21788.8778.332111556-300.185
    DC7221B(5C)12792600130072.21788.8778.3321115565300.210
    DC7969C(5C)20382400120079.69896.3588.3325.4124615340.280
    DC8334C20552300110083.340100.008.3325.413265-340.270
    DC8729A12502200110087.290103.968.331613467-340.165
    DC10323A(3C)*16121800900103.231**119.8918.3316155803400.205
    DC12334C*48001500750123.34**140.008.3325.418496-500.400
    DC12388C(11C)48751500750123.881142.889.525.41969611440.400
